K37 Engine Controller

Intellegent Diesel Engine Asset Management System

Engine Autostart and Stop on multiple triggers via float switches, Pressure, Vacuum, Level Sensor, SAT/GSM modems, PLCs and RTUs
Bi-directional remote telemetry connection to a PLC and SCADA networks and to a website via Satellite or GSM modem.
Bright graphical display showing all engine/equipment data and warning/faults.
Complete asset protection on all sensors with built in 'Failsafe' protection. Includes low radiator coolant level detection.

Multiple sensor readout, with built in separate adjustable bypass timers and slush timers.

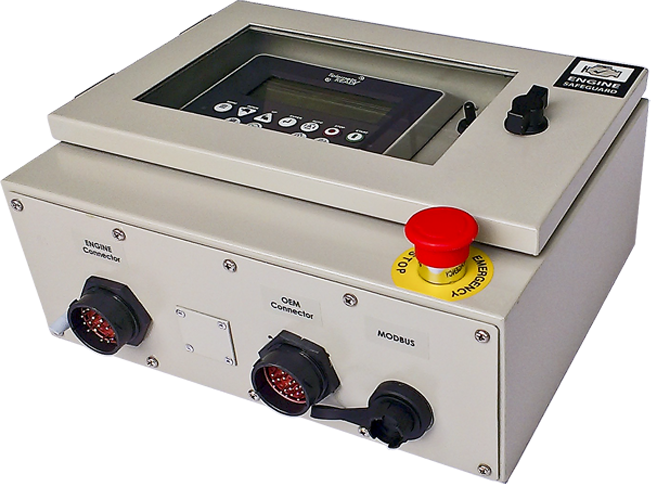

Robust IP66 module in a powder coated enclosure with tempered see through glass. Will not yellow in exposed sunlight.
Automatic variable engine speed control via CANBUS J1939, MODBUS or Pulse Width Modulation via electronic actuator. Can also be controlled remotely.
Save on fuel, running and maintenance costs. Fuel Level monitoring.
Programmable timers for, 7day 24hour timer and 100hour run timer.

One panel to suit mechanical engines or electronic CANJ1939 engines.
Tier 4 emissions ready.
I/O Expansion Capable.
In built data logging on all equipment faults.
Engine Running and Common Alarm outputs.
Easy to set up and program. Will permit future software upgrades via a computer.
Connects to various analogue sensors, ie: 4-20mA pressure, flow and depth sensors, including resistive temperature sensors.

K37 Controller Features

Auto start on
2 floats
Run to fixed speed with PWM
Pump pressure protection input
Pump flow protection input
Bearing Temp reading/shutdown

RPM reading overspeed shutdown
Variable speed control to pump press sensor
Low oil gauge & shutdown
Loss of prime protection input
Engine running relay output

100 hour run
timer
variable speed control to pump flow sensor
High coolant temp gauge & shutdown
fuel level reading and protection
9.36v
Compatible

Engine hour
meter
7 day 24 hour Strat/Stop timer
J1939 CANBUS
ready
MODBUS / Telemetry ready

Battery voltage monitor display
Start/Stop engine via pressure sensor
Configurable Digital Inputs
Fault history
logger

Start on time and Stop on pump pressure
Start/Stop Engine on via level sensor
IP66 Control
module
Low Radiator level shutdown

Reduce Your Operating Costs & Increase The Engine's Life Cycle?

The K37 engine auto-start controller is designed for the off-road stationary diesel engine market. The software is application driven. The controller’s primary function is the management of your diesel engine and the equipment it is driving. The controller’s software and hardware is designed to reduce the cost of running and owning your asset. It will also reduce your fuel and maintenance costs but most of all increase the engine's life cycle.

The K37 is used in the following applications: Waste water de-watering, irrigation pumping, power generation, air compressors, high pressure cleaners, lighting towers, dust suppression pumping, tank filling, sewer bypass, frost control and fire pumps.

Works With A Wide Range Of Diesel Engines.

Automatic engine speed control is offered on all engines, whether electronic or mechanical. This feature can adjust the engine speed to a set speed point or vary the engine speed with respect to an external 4-20mA sensor. All automatic throttling options come with adjustable engine warm up, cool down and line fill timers. This controller is suitable for use on the following engine brands: Caterpillar, Cummins, MTU, Detroit, Perkins, Deutz, Hatz, Scania, Kubota, Yanmar, JCB, Lister and various engines from Asia. Note for engine speed control on mechanical engines, an electronic throttle actuator must be purchased separately.

Telemetry connection Via (Satellite/GSM/GPS).

The controller's telemetry capabilities make certain you will always be connected to your asset via a smart phone, tablet or computer. You have the option of sending data to a 3G network or the option of a go-anywhere satellite network. Just choose the right modem/data-package to suit your budget. PLC, RTU or SCADA users can also connect to the K37. The control panel has inbuilt data logging capabilities and captures all shutdown messages.

Multiple Engine Start/Stop Methods.

Featuring both manual and automatic start modes. The K37 offers great flexibility of use at the touch of a button. In automatic mode, the K37 is able to start and stop your engine based on a number of triggers such as: 7 day timer, single or duel float switches, low pressure switch, telemetry/PLC module, pressure transducer, water depth level transducer, suction (vacuum) pressure and mains failure contactor. The option is yours.

Software Features

Engine Hours display (Hour Meter)
Engine RPM display and Overspeed protectionr
Accepts tachometer RPM signal from:(adjustable)
Alternator W+
J1939 CANBUS ECU
Magnetic Pick Up over a Fly Wheel
Automatic Engine Speed control from: (adjustable)
Go To Fixed RPM set point
MODBUS throttle commands
Discharge pressure sensor
Discharge flow rate sensor
Dam / Sump level sensor
Automatic Start and Stop on: (adjustable)
Single or Duel Float Switches
Single Pressure Switch
Discharge pressure sensor
Can Start/Stop and control engine speed via Website

Suction/Vacuum sensor
Dam / Sump level sensor
7 day 24 hour programmable Timer
Engine Oil Pressure display and engine shut down (adjustable)
Engine Temperature display and engine shut down (adjustable)
Data logs all equipment fault messages
Displays all equipment fault messages (J1939 included)
MODBUS (RS232/485) Communication
Low radiator coolant level shutdown
Fuel level reading / shutdown (adjustable)
Battery Voltage VDC display
Low Battery Warning)
Loss of RPM Engine Shut Down (adjustable settings and timers)
Glow Plug Excitation (requires high Current Relay)

Loss of Prime Digital Input (adjustable settings and timers)
99 hour programmable Stop Timer
7 day 24 hour programmable Start / Stop Timer
Discharge Flow rate control, protection and reading (adjustable )
Discharge Pump pressure control, protection and reading (adjustable )
Suction / Vacuum pressure control, protection and reading
Programmable digital inputs (adjustable settings and timers)
Programmable pump / bearing temperature sensor (adjustable )r
Clutch Control relay (optional extra)
Vacuum priming relay (optional extra)
Engine Running Output and Common Fault Output

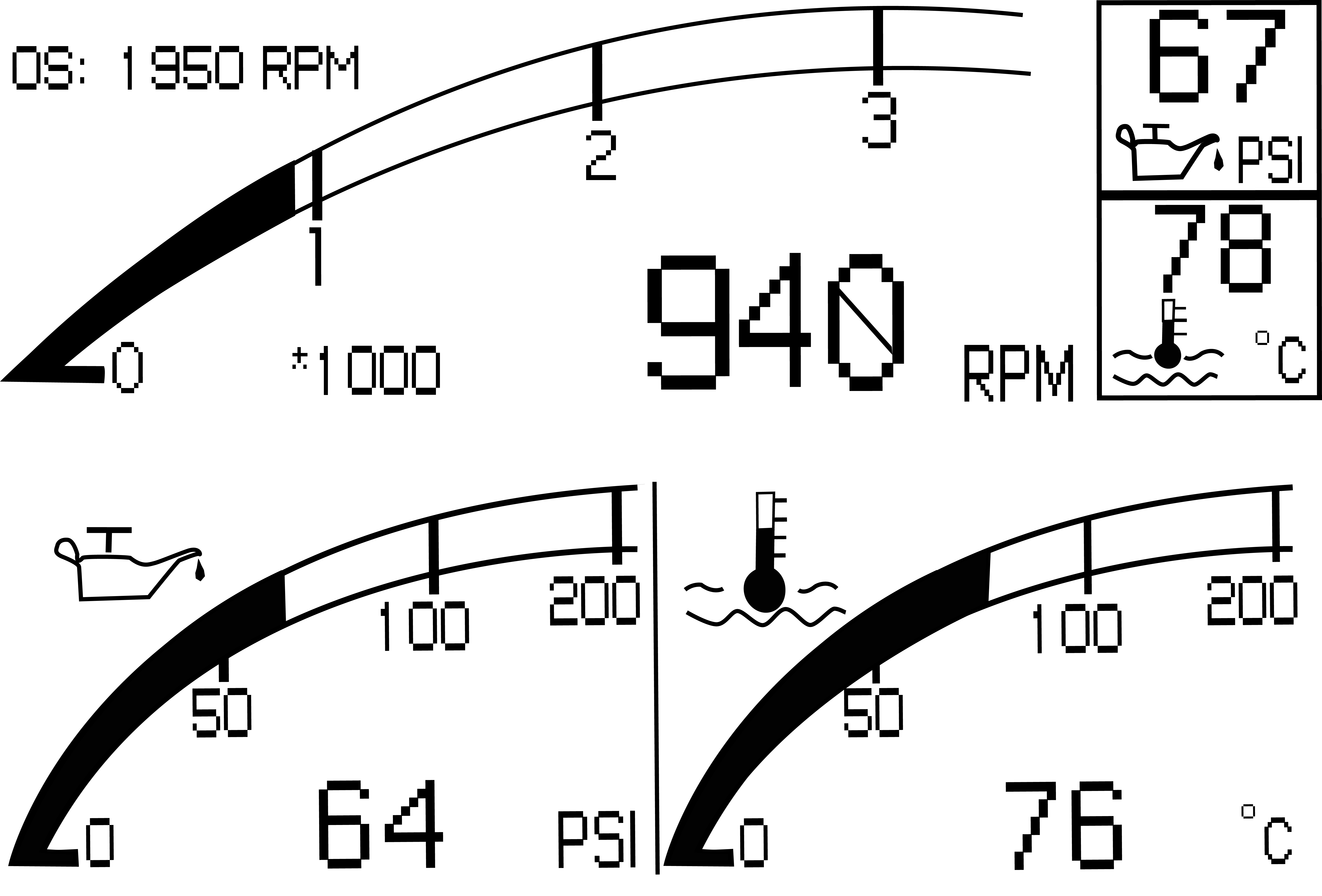

K37 LCD Screen Display

The K37 display unit LCD screen is easy to read with large icons and characters. The LCD screen can be viewed in direct sunlight.
