K101 / K101-OE Engine Controller

Intelligent Diesel Engine Asset Management System

Engine Start and Stop on local keypad or via Text /Web Modem or Telemetry commands, via PLCs and RTU's.
Bi-directional remote telemetry connection to a PLC and SCADA networks and to a website via Satellite or GSM modem.
Bright graphical display showing all engine/equipment data and warning/faults.
Complete asset protection on all sensors with built in 'Failsafe' protection. Includes low radiator coolant level detection.

Connects to various analogue sensors, ie: 4-20mA pressure or flow sensors, including resistive sensors.
Multiple sensor readout, with built in separate adjustable bypass timers and slush timers.
Robust IP66 control module in a powder coated enclosure with tempered see through glass. Will not yellow in exposed sunlight.
Automatic engine speed control to fixed speed, via CANBUS J1939 or MODBUS. Can also be controlled remotely
Save on fuel, running and maintenance costs.

Built in warmup and cooldown timers for J1939 ECU engines.
Programmable 100hour run timer.
One panel to suit mechanical engines or electronic CANBUS J1939 engines.
Programmable Digital input for remote shutdowns, flow switch, switch gauges etc.
In built data logging on all equipment faults.
Easy to set up and program. Will permit future software upgrades via a computer.

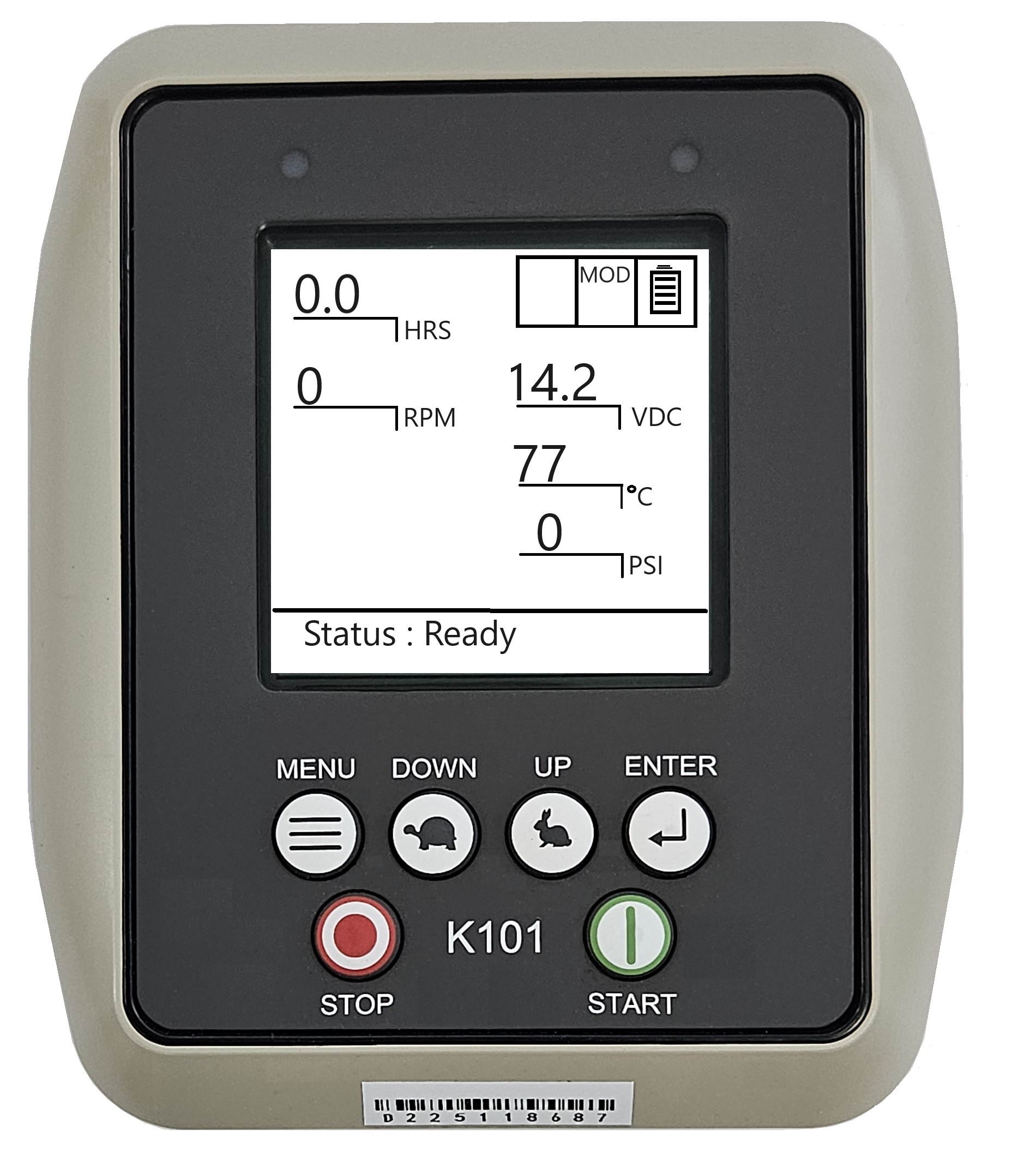

a picture of the K101 / K101-OE Control Unit

K101 / K101-OE Controller Features

9 -30VDC
compatible.
Load and Save Profiles.
Pump pressure protection input.

Pump flow protection input.
Low oil gauge & shutdown.
Loss of prime protection input.

RPM Reading overspeed shutdown.
High coolant temp gauge & shutdown.
GSM,MODBUS Telemetry Ready.

100 hour run
timer.
J1939 CANBUS
ready.
J1939 CANBUS fault decoding.

Engine hours
run count.
Configurable Digital
Inputs.
Fault history
logger.

Battery voltage monitor/display.
IP66 Control module UV stable.
Low Radiator level shutdown.

Reduce Your Operating Costs & Increase The Engine's Life Cycle?

The K101 / K101-OE Engine Autostart Controller is built for off-road stationary diesel engines. Designed to increase the lifespan of your asset while reducing ownership and operating costs. Its software and hardware provide standard monitoring and automation features, effectively managing your engine and the equipment it drives.

The K101 / K101-OE is used in the following applications: Waste water de-watering, irrigation pumping, power generation, air compressors, high pressure cleaners, lighting towers, dust suppression pumping, tank filling, sewer bypass, frost control, and fire pumps.

Works With A Wide Range Of Diesel Engines.

Automatic engine speed control is offered on all J1939 ECC engines. This feature can adjust the engine speed to a set speed point or via MODBUS Communicaitons. All automatic throttling options come with adjustable engine warm up, cool down, and line fill timers.
This controller is suitable for use on the following engine brands: Caterpillar, Cummins, MTU, Detroit, Perkins, Deutz, Hatz, Scania, Kubota, Yanmar, JCB, Lister and various engines from Asia.

Telemetry Connection Via (Satellite/GSM/GPS).

The controllers telemetry capabilities ensure that you will always be connected to your asset via a smart phone, tablet or computer. You have the option of sending data to a 4G LTEnetwork or the option of a go-anywhere satellite network. Choose the right modem/data package to suit your budget. PLC, RTU or SCADA users can also connect to the K101 / K101-OE. The control panel has inbuilt data logging capabilities and captures all shutdown messages.

Multiple Engine Start/Stop Methods

Featuring both manual and automatic start modes, the K101 / K101-OE offers great flexibility of use at the touch of a button. In automatic mode, the K101 / K101-OE is able to start and stop your engine based on a number of triggers such as:Telemetry/PLC module, Web Modem and basic Text modem commands.

Software Features

Engine Hours display (Hour Meter)
Engine RPM display and Overspeed protection
Accepts tachometer RPM signal from:(adjustable)

Alternator W+

J1939 CANBUS ECU

Magnetic Pick Up over a Fly Wheel

Automatic Engine Speed control from:

Go To Fixed RPM set point (CAN J1939 only)

MODBUS throttle commands

Automatic Start / Stop on:

MODBUS commands

Text Modem commands

Engine Oil Pressure display and Engine shut down
Engine Temperature display and engine shut down
Low Radiator Coolant level Shutdown
Data logs equipment fault Messages
Displays all equipment fault messages (J1939 included)
MODBUS (RS232/485) Communication

Battery Voltage VDC display
Low Battery Warning
Loss of RPM Engine Shut Down
Programmable digital inputs
99 hour programmable Stop Timer
Pump Flow rate control, protection and reading (sensor required)
Pump Pressure control, protection and reading (sensor required)
Glow Plug Excitation (requires high Current Relay)
Can Start/Stop and control engine speed via Website

K101 / K101-OE LCD Screen Display

The K101 / K101-OE display unit LCD screen is easy to read with large icons and characters. The LCD screen can be viewed in direct sunlight.

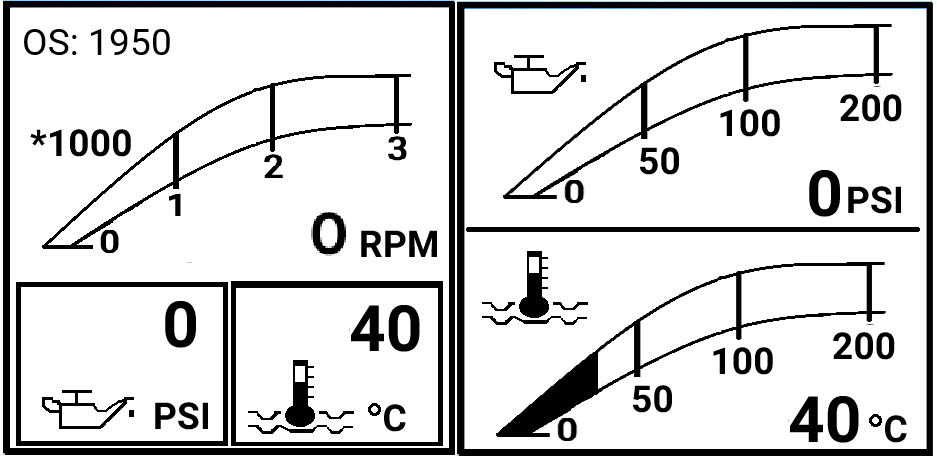

A picture of the k101 /K101-OE display screen
