M4G02 ALL IN ONE GSM/GPS/MODULE

The M4G02 ALL IN ONE MODULE Allows easy access to your mobile and/or fixed assets equipped with a Kensho Diesel Engine Controller, the 4G/LTE MODEM takes advantage of combination modem solution. This product is designed to connect directly with a 4G mobile phone tower / network.
The modem is a simple plug and play device in a rugged enclosure catering for all types of applications. A combination antenna is simple and low profile offering easy installation on fixed and mobile equipment. The 4G/LTE MODEM gives data access and control of the engine and pump via the Kensho Diesel Engine Controller. Onboard GPS also gives you an actuate position of your asset.

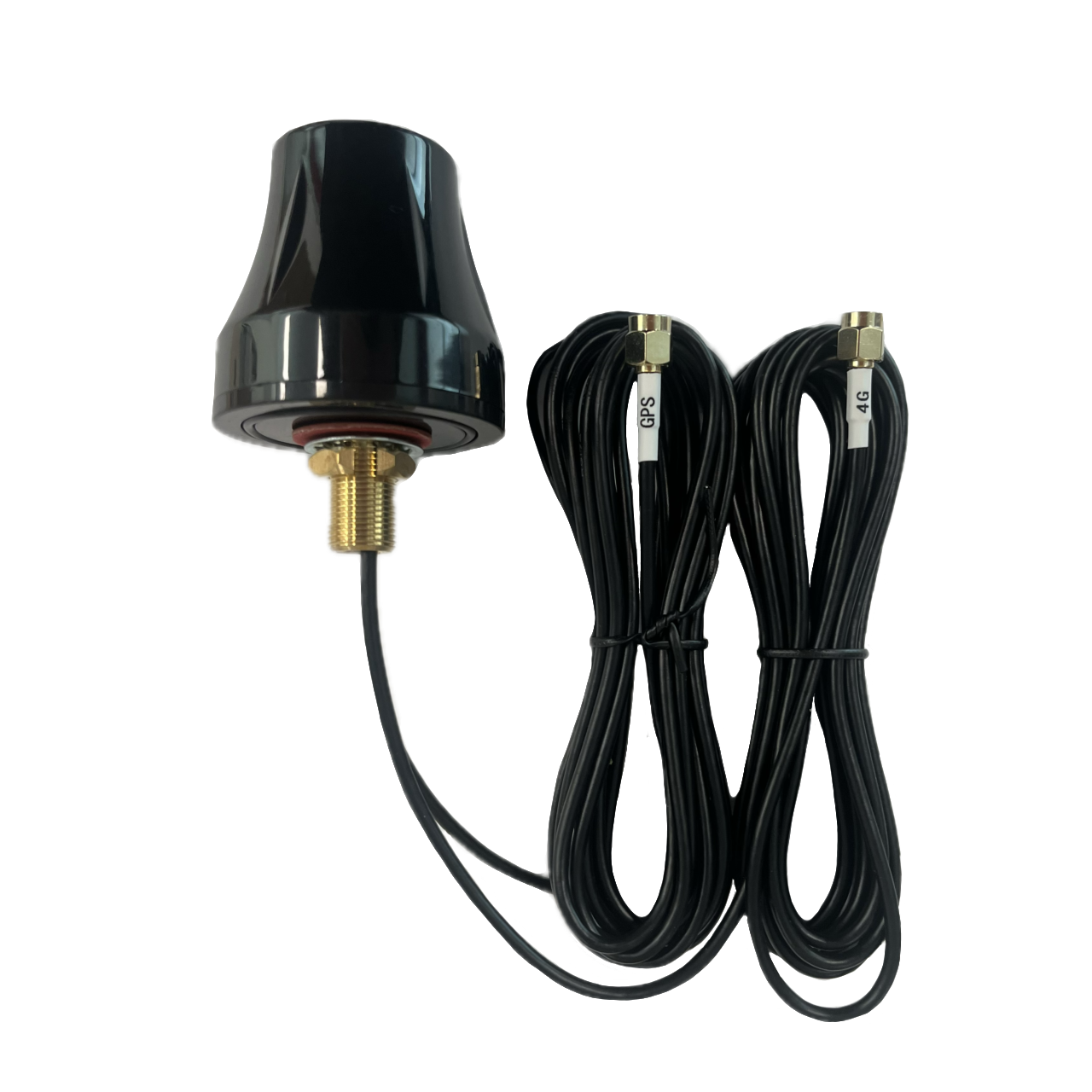

a picture of the antenna a picture of the M4G02

The data available to the website includes engine rpm, engine hours, oil pressure, coolant temperature, fuel rate, engine load, battery voltage etc. Pump and Sensor information includes discharge pressure, flow rate, suction pressure and fuel level. From the website you are able to control the engine to perform a START, STOP, Controller Reset, Force back into Auto Mode and Remote Engine Speed control. Data is sent on demand to/from the website when calls to Start and Stop or Faults are being reported. Satelite option to be advice on request. Clever data management stores engine/pump information in one minute intervals and sends them in one transmission to the website.

M4G02-D9-WP

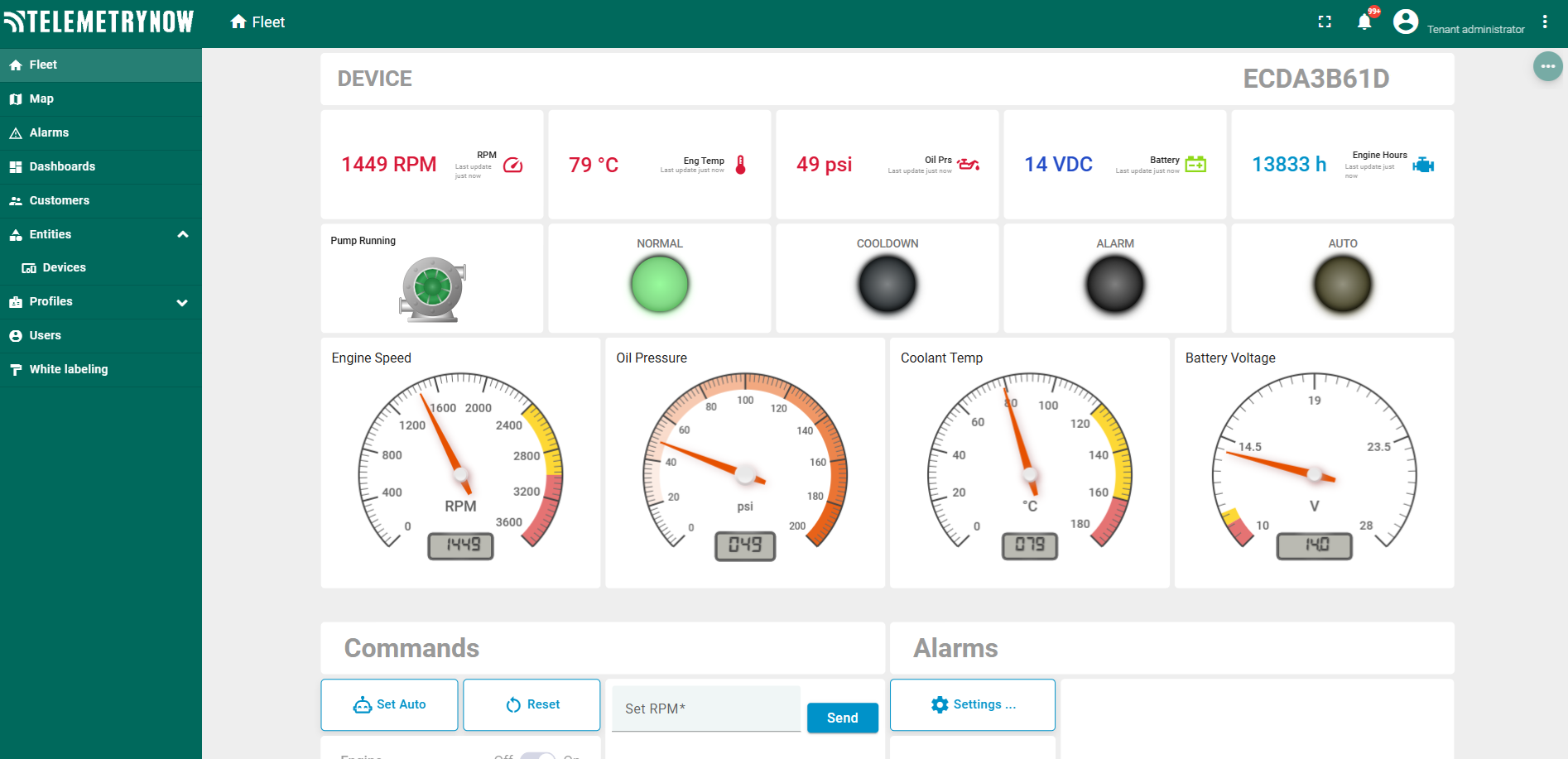

image of the Panel View for the M3G02Web Module

Panel View

Showing key engine and pump information. Buttons for engine control and current status

Asset History

Logged data displayed over nominated time period. 1 day to 12months.

Image of the Asset View Panel for the M3G02WEB Module

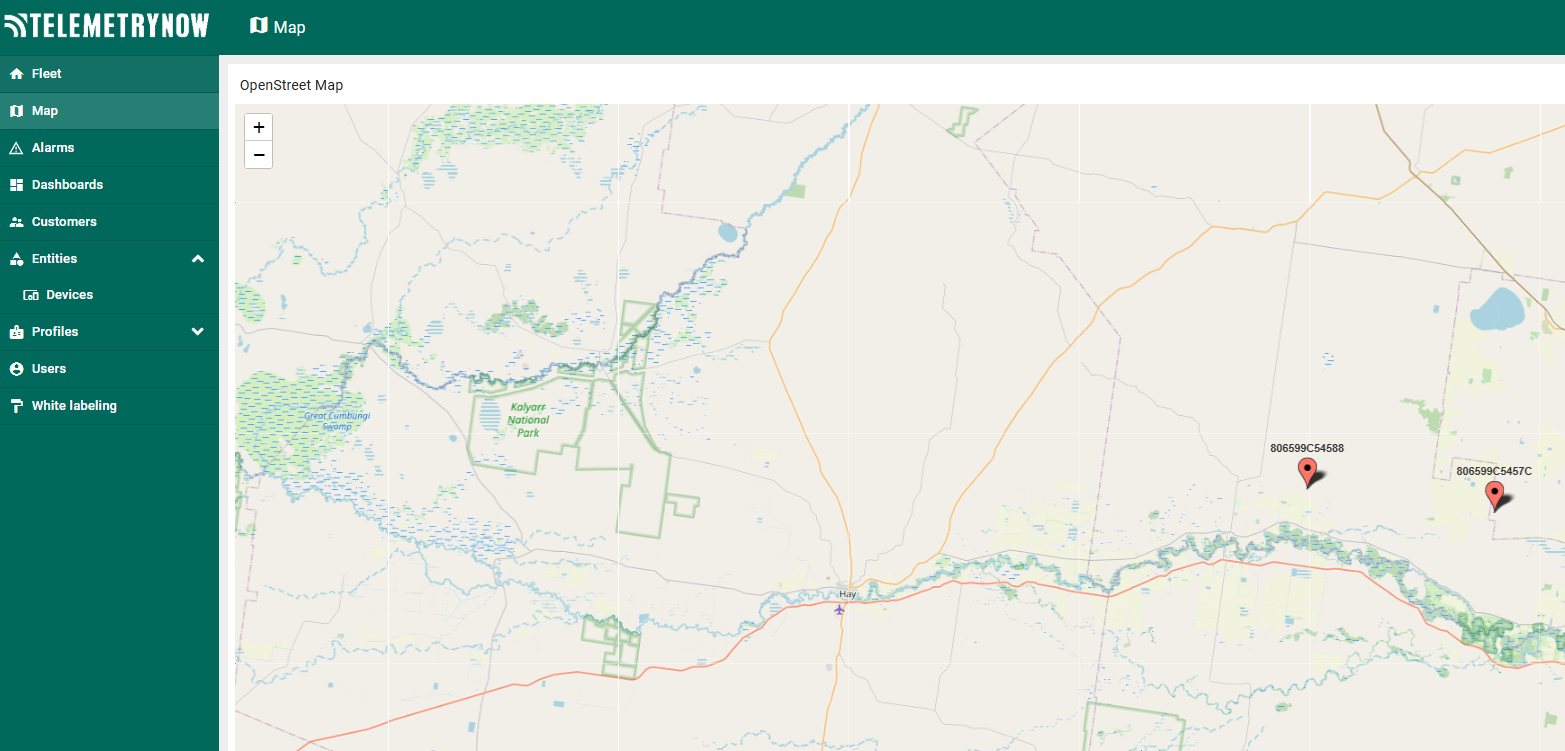

Image of the Map View Panel for the M3G02WEB Module

Map View

Current Location of Asset and current status.

Fault History

Event status detailing engine shutdown and reason.

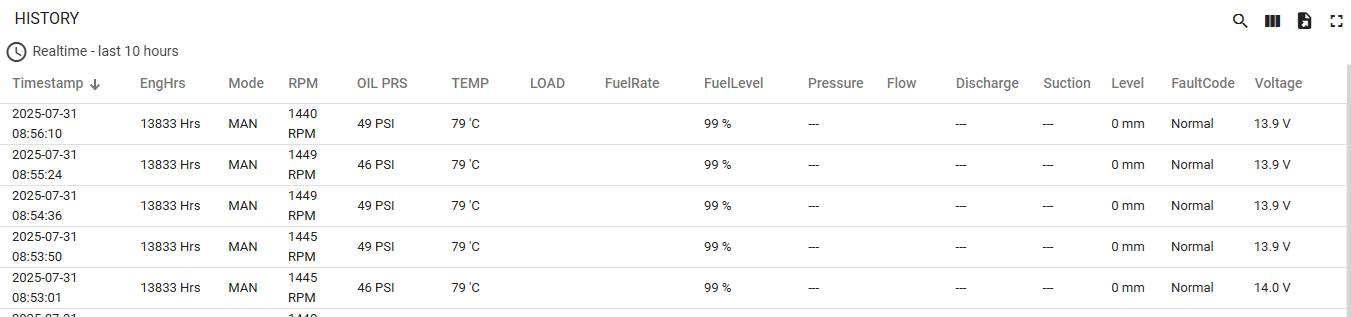

Image of the Fault History Panel for the M4G02WEB Module
The Telemetry Now Website offers:
  • Fleet management with control over assets.(e.g. monitoring of engine hours, voltage.)
  • Asset Grouping and Users in a Customer and Station list arrangement.
  • User tab for creation of users with limited or full access.
  • Report mechanism with the ability to export data per asset for a nominated time period.
  • Events creation such as email alerts on engine/pump faults, GPS asset location for geo-fence creation and alerts are available on request.

    • Simple design and layout enables quick and easy access to all assets with multiuser operation. Predefined alarms for emails and SMS alerts.

    Technical Specifications

    Frequency Bands
    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
    LTE-TDD: B38/B39/B40/B41
    WCDMA: B1/B2/B4/B5/B6/B8/B19
    GSM: B2/B3/B5/B8

    Data
    LTE:
    LTE-FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
    LTE-TDD: Max 8.96Mbps (DL)/Max 3.1Mbps (UL)

    UMTS:
    HSDPA: Max 42Mbps (DL)
    HSUPA: Max 5.76Mbps (UL)
    WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL)

    GSM:
    EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
    GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

    User Interfaces

    Software Features
    On board WEB Interface for Configuration and Diagnostics
    Over Air updates Capable

    Electrical Characteristics
    Current Consumption Transmit : 1.0A (nominal)
    Transmit GSM : 0.2A (nominal)
    Standby: 200mA Sleep: 25uA
    Internal Charger and Battery 2000mAHr
    Type Approval FCC, PTCRB, CE

    Environmental Characteristics
    Operating Temperature -10-70C (-10-50C with LiPo Battery)
    Storage Temperature: -40C to +80 C

    Enclosure
    High Temp UV Stabilised enclosure 155mm x 95mm x 50mm with vibration bush mounts.

    Optional Accessories
    3mtr Antenna Extension for remote mounting Higher Gain antennas on request.
    Combination CELL and GPS
