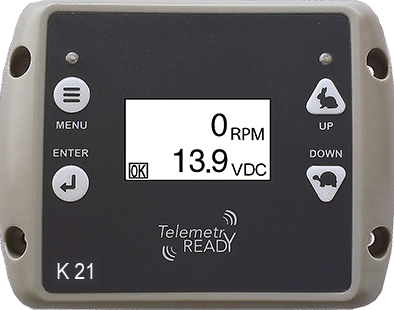

K21-OE Engine Controller

Diesel Engine Management System

Entry level cost effective control panel for small to medium size diesel engines.
Engine push button Start and Stop. With over crank protection.
Bright graphical display showing all engine data and warning/faults. RPM, battery voltage and engine hours are shown.
Complete engine protection on low oil pressure switch or sender and high engine temperature switch or sender. Includes low radiator coolant level detection and overspeed engine shutdown.

Robust IP66 control module in a powder coated enclosure with vibration isolators.
Engine speed control via CANBUS J1939 for electronic engines. Not available on mechanical engines.
Programmable 100hour run timer. Set it, start the engine and walk away.
Spare digital inputs.

One panel to suit mechanical engines or electronic CANBUS J1939 engines.
In built data logging on all engine faults.
Easy to set up and program. Will permit future software upgrades via a computer. 4-20mA Pump Pressure input for pump pressure protection (requires 4-20mA Transducer).

K21-OE Controller Features

Low Oil
Shutdown.
J1939 CANBUS
Ready.

High Coolant Temp
Shutdown.
Fault History
Logger.

RPM Display Overspeed
Shutdown.
Configurable Digital
Inputs.

100 hour Run
Timer.
IP66 Control Module
UV Stable.

Engine Hour
Meter.
4-20mA
Pump Pressure.

Battery Volatege
Monitor/Display.
Low Radiator Level
Shutdown.
9-30VDC
Compatible.

Reduce your operating costs and increase the engine's life cycle

The K21-OE engine controller is designed for the off-road stationary diesel engine market. It is a cost effective entry level control panel. The controller’s primary function is the management of your diesel engine. The software and hardware are designed to be simple and easy to use. The K21-OE is used in the following in a basic application: waste water de-watering, irrigation pumping, power generation, air compressors, high pressure cleaners, lighting towers, dust suppression pumping, tank filling, sewer bypass, frost control and fire pumps..

Works With A Wide Range Of Diesel Engines.

The K21-OE is suitable on both electronic or mechanical engines. On electronic engine the speed can be increased by pressing up/down arrows. Mechanical engines must be controlled with a mechanical throttle cable. This controller is suitable for use on the following engine brands: Caterpillar, Cummins, MTU, Detroit, Perkins, Deutz, Hatz, Scania, Kubota, Yanmar, JCB, Lister and various engines from Asia.

Engine Wiring & Panel kits To Suit Your Build.

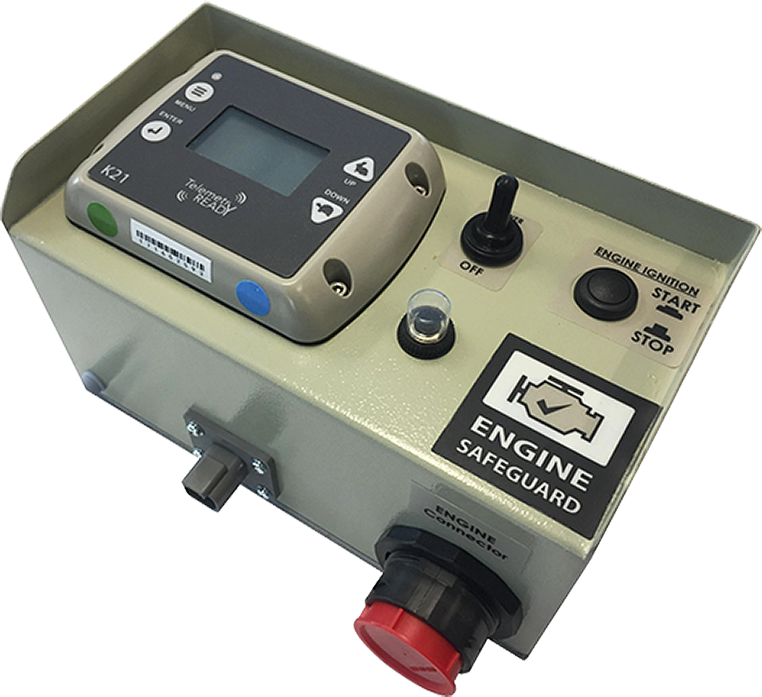

The controller is normally supplied in kit form. This kit includes the controller in an enclosure, an engine wiring loom, a throttle actuator, secondary solenoids, mounting brackets and any other components your build will require. Just mention what you need and we will supply.

Software Features

Engine Hours display (Hour Meter)
Engine RPM display and Overspeed protection
Accepts tachometer RPM signal from:(adjustable)
Alternator W+
J1939 CANBUS ECU
Magnetic Pick Up over a Fly Wheel
Engine Speed control via CNBUS J1939
Displays all engine fault messages (J1939 included )
Date Logs and Fault Messages
MODBUS ( RS232/485 ) Communication

Low Radiator Coolent Level Shutdown
Low Engine Oil Pressure Sensor or Switch Engine Shut Down
High Engine Temperature Sensor or Switch Engine Shut Down
Glow Plug Excitation ( Requires High Current Relay )
Battery Voltage VDC Display With Low Battery Warning
4-20mA Pump Pressure Analogue Input
Loss of RPM Engine Shut Down
100 hour Programmable Stop Timer
Programmable Analogue or Digital Inputs
Monitoring of Messages ONLY Permitted via WEBSITE

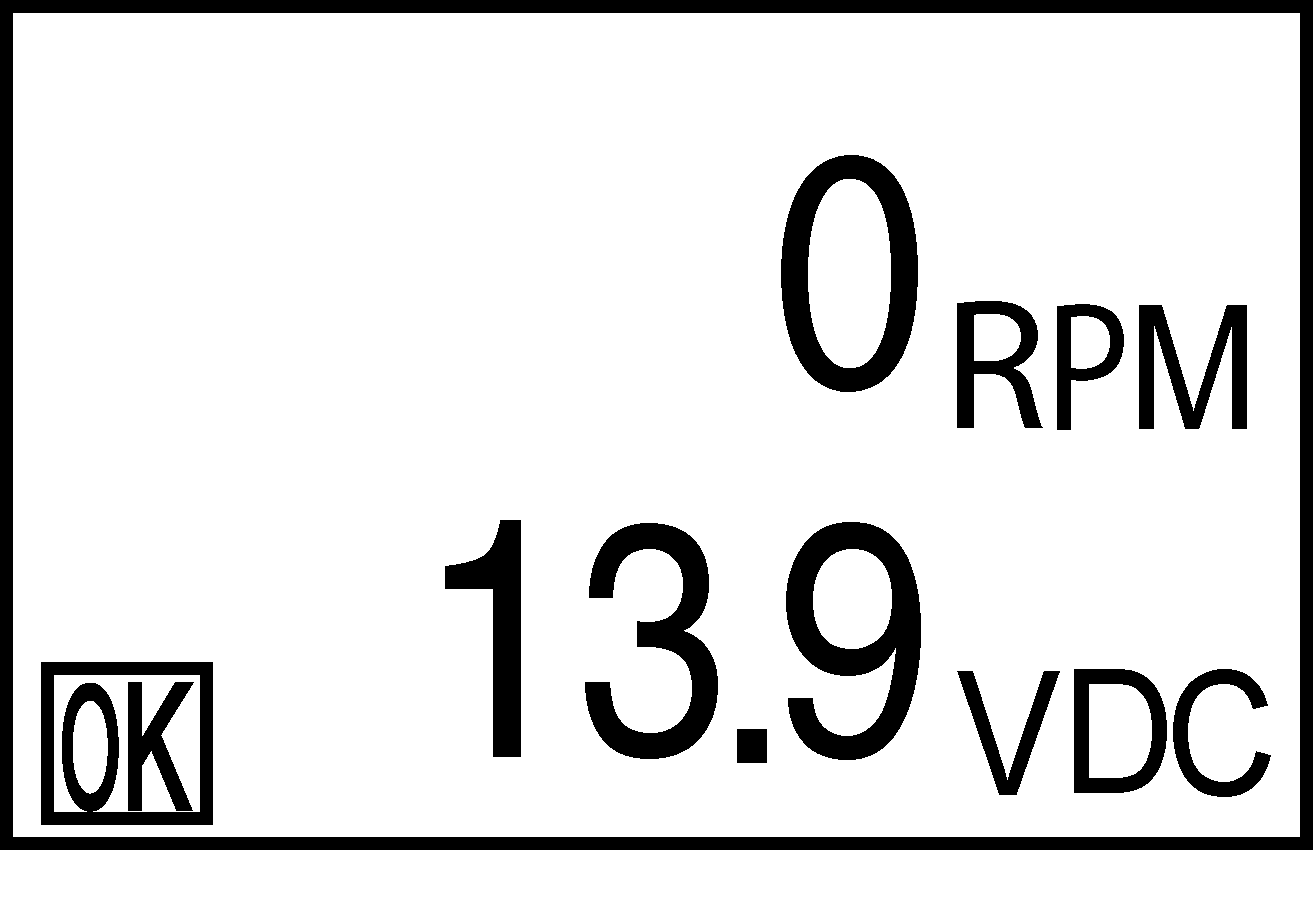

K21-OE LCD Screen Display

K21-OE display unit LCD screen is easy to read with large icons and characters. The LCD screen can be viewed in direct sunlight.

Control Systems

K21 Engine Controller

The K21 engine controller is designed for the off-road stationary diesel engine market. It is a cost effective entry-level control panel. The controller’s primary function is the management of your diesel engine. The software and hardware are designed to be simple and easy to use.

View Product »

K27 Engine Controller

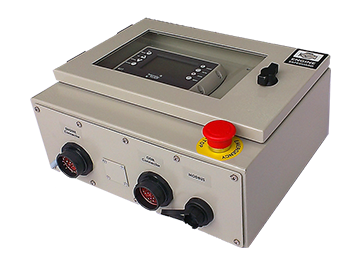

The K27 engine auto start control panel is a run to fixed speed controller designed for the off-road stationary diesel engine market. The software is application driven. The controller’s primary function is the intelligent management of your diesel engine and the equipment it is driving. The software and hardware are designed to lower the cost of running and owning your asset. It also includes configurable inputs and outputs. For example you can add pump pressure and flow rate sensors.
